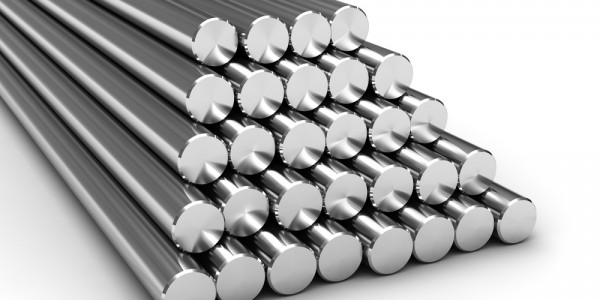

Elements for Motion’s Type WRB Linear shafts are precision hardened and ground. The stainless steel shaft is made from the material X46Cr13 and is available in metric measurements, with diameter ranging from 5mm – 50mm and lengths of 3,000mm or 6,000mm.
RFQ / Contact Download PDF| Dia [mm] | Type | Weight [kg/m] | Length [mm] | Tolerance iso h6 [mm] | Straightness T1 [mm/m] | Roundness [um] |
|---|---|---|---|---|---|---|
| 5 | WRB 5 | 0.16 | 3000 | 5.000 / 4.992 | 0.2 | 4 |
| 6 | WRB 6 | 0.23 | 6000 | 6.000 / 5.992 | 0.2 | 4 |
| 8 | WRB 8 | 040 | 6000 | 8.000 / 7.991 | 0.2 | 4 |
| 10 | WRB 10 | 0.62 | 6000 | 10.000 / 9.991 | 0.1 | 4 |
| 12 | WRB 12 | 0.89 | 6000 | 12.000 / 11.989 | 0.1 | 5 |
| 14 | WRB 14 | 1.21 | 6000 | 14.000 / 13.989 | 0.1 | 5 |
| 16 | WRB 16 | 1.58 | 6000 | 16.000 / 15.989 | 0.1 | 5 |
| 20 | WRB 20 | 2.47 | 6000 | 20.000 / 19.987 | 0.1 | 6 |
| 25 | WRB 25 | 3.85 | 6000 | 25.000 / 24.987 | 0.1 | 6 |
| 30 | WRB 30 | 5.55 | 6000 | 30.000 / 29.987 | 0.1 | 6 |
| 40 | WRB 40 | 9.87 | 6000 | 40.000 / 39.984 | 0.1 | 7 |
| 50 | WRB 50 | 15.40 | 6000 | 50.000 / 49.984 | 0.1 | 7 |
