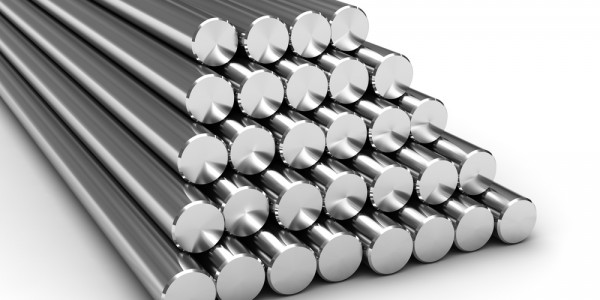

Elements for Motion’s Type W Linear shafts are precision hardened and ground. The carbon steel shaft is made from materials cf53 and ck55 and is available in metric measurements, with diameter ranging from 5mm – 50mm and lengths of 3,000mm or 6,000mm.
RFQ / Contact Download PDF| Dia [mm] | Type | Weight [kg/m] | Length [mm] | Tolerance iso f7 [mm] | Straightness T1 [mm/m] | Roundness [um] |
|---|---|---|---|---|---|---|
| 5 | W 5 | .16 | 3000 | 5.000/ 4.992 | 0.2 | 4 |
| 6 | W 6 | .23 | 6000 | 6.000 / 5.992 | 0.2 | 4 |
| 8 | W 8 | .40 | 6000 | 8.000 / 7.991 | 0.2 | 4 |
| 10 | W 10 | .62 | 6000 | 10.000 / 9.991 | 0.1 | 4 |
| 12 | W 12 | .89 | 6000 | 12.000 / 11.989 | 0.1 | 5 |
| 14 | W 14 | 1.21 | 6000 | 14.000 / 13.989 | 0.1 | 5 |
| 16 | W 16 | 1.58 | 6000 | 16.000 / 15.989 | 0.1 | 5 |
| 20 | W20 | 2.47 | 6000 | 20.000 / 19.987 | 0.1 | 6 |
| 25 | W 25 | 3.85 | 6000 | 25.000 / 24.987 | 0.1 | 6 |
| 30 | W 30 | 5.55 | 6000 | 30.000 / 29.987 | 0.1 | 6 |
| 40 | W 40 | 9.87 | 6000 | 40.000 / 39.984 | 0.1 | 7 |
| 50 | W 50 | 15.40 | 6000 | 50.000 / 49.984 | 0.1 | 7 |
