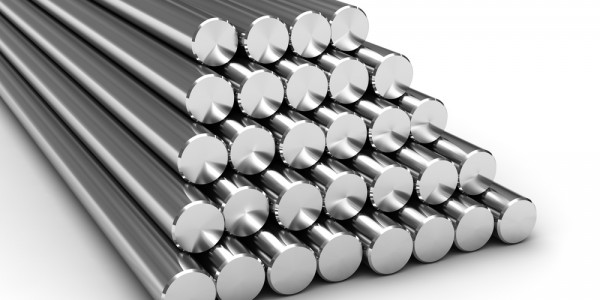

Elements for Motion’s Type WRBZ Linear shafts are precision hardened and ground. The stainless steel shaft is made from the material X46Cr13 and is available in standard measurements, with diameter ranging from 1/4 inch – 2 inches and a length of 236 inches.
RFQ / Contact Download PDF| Dia [in] | Type | Weight [lb/ft] | Length [in] | Tolerance class "L" [in] | Straightness T1 [in/ft] | Roundness [in] |
|---|---|---|---|---|---|---|
| 1/4 | WRBZ 4 | 0.17 | 236 | .2495/.2490 | 0.0024 | 0.000157 |
| 3/8 | WRBZ 6 | 0.38 | 236 | .3745/.3740 | 0.0024 | 0.000157 |
| 1/2 | WRBZ 8 | 0.66 | 236 | .4995/.4990 | 0.0012 | 0.000197 |
| 5/8 | WRBZ 10 | 1.04 | 236 | .6245/.6240 | 0.0012 | 0.000197 |
| 3/4 | WRBZ 12 | 1.50 | 236 | .7495/.7490 | 0.0012 | 0.000236 |
| 1 | WRBZ 16 | 2.66 | 236 | .9995/.9990 | 0.0012 | 0.000236 |
| 1 - 1/4 | WRBZ 20 | 4.17 | 236 | 1.2495/1.2490 | 0.0012 | 0.000276 |
| 1 - 1/2 | WRBZ 24 | 6.00 | 236 | 1.4994/1.4989 | 0.0012 | 0.000276 |
| 2 | WRBZ 32 | 10.67 | 236 | 1.9994/1.9987 | 0.0012 | 0.000276 |
